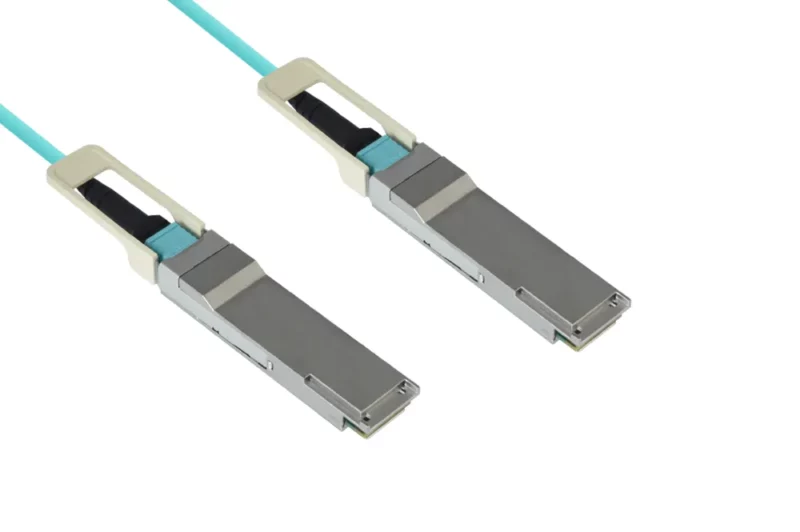

Fiber Optic Cable Assembly
Part Number: AS-CBL-OPT-A04QQ-A-3M and AS-CBL-OPT-A04QQ-A-100M
Features
- Fiber optic cable assembly
- 2x QSFP+ 40GBASE-SR4 MPO transceivers
- Wavelength: 850nm
- Multimode OM3 12-strand fiber ribbon cable
- Polarity/gender: type B/F-F
- Standard lengths: 3m and 100m (other lengths with MQO)
The Fiber Optic Cable Assembly combines a multimode OM3, 12-strand fiber MPO F-F ribbon cable with a QSFP+ 40GBASE-SR4 transceiver on either end. The polarity of the cable is type B, the polish is UPC.
The standard lengths are 3m and 100m, but other lengths are available on request and as minimum quantity order (MQO).
Specification summary
| End A | OM3-MPO-12MPO connector, female (without pins) |
| End B | OM3-MPO-12MPO connector, female (without pins) |
| Fiber type | OM3 (50/125μm), type B polarity, UPC polish |
| Wavelength | 850nm |
| Cable jacket | LSZH |
| Cable outer diameter | 3.0mm |
| Cable length | Two standard lengths available: 3m, 100m |
| Operating case temperature | -20 to 70°C |
| Download | File Type | File Size | |
|---|---|---|---|
Other Downloads |
White Paper: Optical Fiber Technology for CoaXPress over Fiber | 856.31 KB |
| Part number | Description |
|---|---|
| AS-CBL-OPT-A04QQ-A-3M |
Fiber Optic Cable Assembly with multimode OM3, 12-strand fiber MPO F-F ribbon cable (type B, F-F) and two QSFP+ 40GBASE-SR4 transceivers, 850nm. Length of the cable: 3m. Other lengths are available on request and with a minimum quantity order. |
| AS-CBL-OPT-A04QQ-A-100M |
Fiber Optic Cable Assembly with multimode OM3, 12-strand fiber MPO F-F ribbon cable (type B) and two QSFP+ 40GBASE-SR4 transceivers, 850nm. Length of the cable: 100m. Other lengths are available on request and with a minimum quantity order. |
